Le serie Z Conference , Z Entertainment e Z Ceiling utilizzano la famosa tecnologia Omniray ed è il perfetto connubio tra l’elevata qualità del suono Hi-End applicato ad un prodotto Pro. La caratteristica principale di questi prodotti è l’elevata intelligibilità che permette la riproduzione fedele del parlato senza modificare il timbro della voce. Queste serie sono pensate per sonorizzare quei luoghi in cui il diffusore non deve essere invadente. Grazie alle loro ridotte dimensioni possono essere inserite in qualsiasi ambiente.
Applicazioni: conference hall, sale meeting, chiese, alberghi, spa, palestre, musei, gallerie d’arte, fiere
ZC42
High ratio EBP/dimensions
Solid Wood horn for sonic accuracy
OEM transducers made in Italy
Military grade Xover components (85°C ambient temperature)
Simple installation hardware
Armonia presets
RAL color available
Dispersion 120°V – 120°H -6dB
Transducers LF 2 X 4” (1,5’’ V.C.) | HF 1’’ Soft Dome Tw – 25mm | Omniray ZG 4”
Impedance 16Ω
Rated Power 150W (AES)
Peak Power 600W
Sensitivity 1W/1m 90 dB
SPL cont/peak 1m 112/118 dB Spl
Freq. range (-10dB) 150Hz – 20kHz
Dimensions (mm) W 125 x H 400 x D 150
Weight (kg) 6
ZC44
High ratio EBP/dimensions
Solid Wood horn for sonic accuracy
OEM transducers made in Italy
Military grade Xover components (85°C ambient temperature)
Simple installation hardware
Armonia presets
RAL color available
Dispersion 120°V – 120°H -6dB
Transducers LF 4 x 4” (1,5’’ V.C.) | HF 1 x 1” (1” V.C.) | Omniray ZG 4”
Impedance 8Ω
Rated Power 300W (AES)
Peak Power 1200W
Sensitivity 1W/1m 93 dB
SPL cont/peak 1m 118/124 dB Spl
Freq. range (-10dB) 130Hz – 20kHz
Dimensions (mm) W 125 x H 600 x D 150
Weight (kg) 9

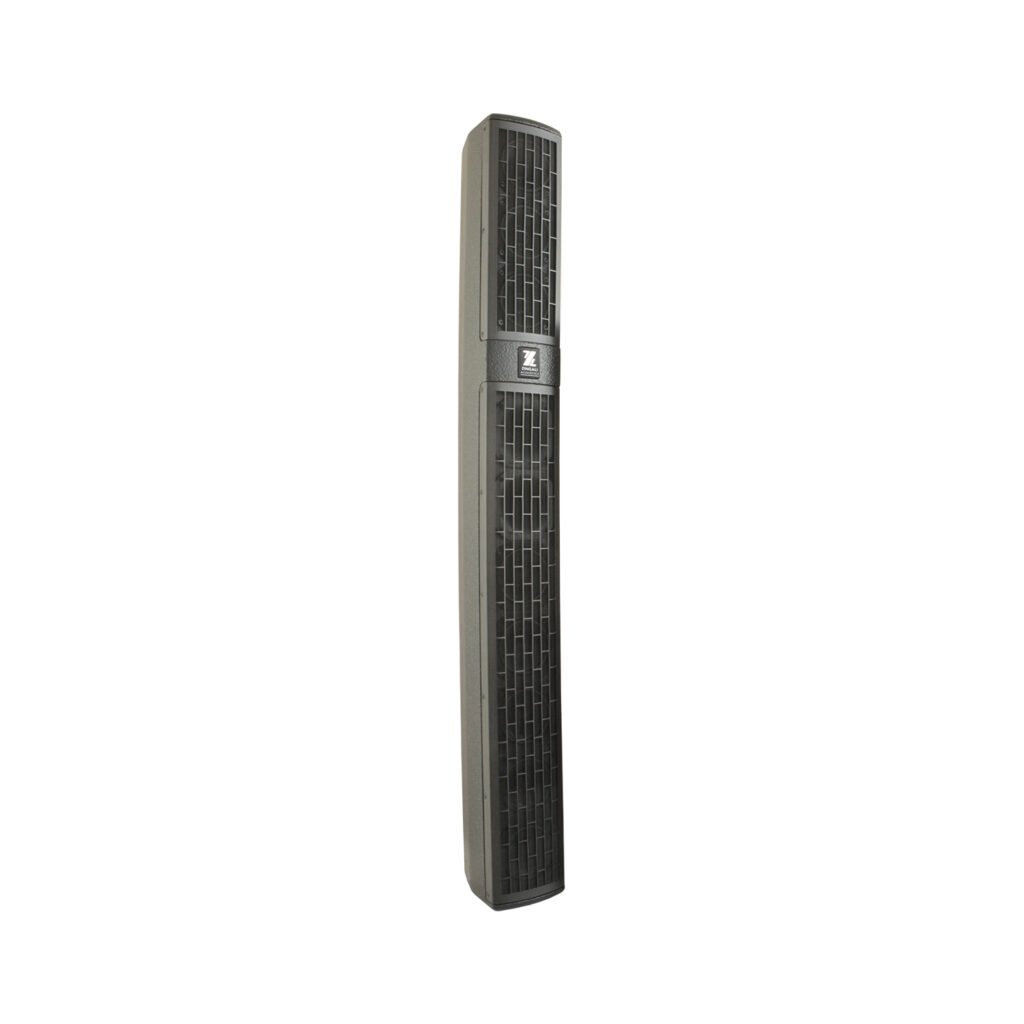

ZC482
High ratio EBP/dimensions
Solid Wood horn for sonic accuracy
OEM transducers made in Italy
Military grade Xover components (85°C ambient temperature)
Simple installation hardware
Armonia presets
RAL color available
Dispersion 120°V – 100°H – 6dB
Transducers LF 8 X 4’’ (1,5’’ V.C.) | HF 2 x Compression Driver 1’’ V.C. 1’’ | Omniray Horn 2 X ZG 4’’
Impedance 4Ω
Rated Power 600W (AES)
Peak Power 2400W
Sensitivity 1W/1m 93 dB
SPL cont/peak 1m 120/126 dB Spl
Freq. range (-10dB) 80Hz – 20kHz
Dimensions (mm) W 125 x H 1100 x D 150
Weight (kg) 10
ZC51
High ratio EBP/dimensions
Solid Wood horn for sonic accuracy
OEM transducers made in Italy
Military grade Xover components (85°C ambient temperature)
Simple installation hardware
Armonia presets
RAL color available
Dispersion 120°V – 120°H – 6dB
Transducers LF 1 X 5’’ (1,5’’ V.C.) | HF 1’’ Soft Dome Tw 25mm | Omniray Horn ZG 4’’
Impedance 8Ω
Rated Power 200W (AES)
Peak Power 800W
Sensitivity 1W/1m 91 dB
Freq. range (-10dB) 90Hz – 20kHz
Dimensions (mm) H 300 x W 150 x D 172
Weight (kg) 3,7
